RC522 RFID Reader/Writer

Mã SP: CHN00773

90.000₫
RC522 RFID Reader/Write For Arduino The MFRC522 is a highly integrated RF frequency reader/writer IC for contact less...
Số lượng
- +
Sản phẩm liên quan

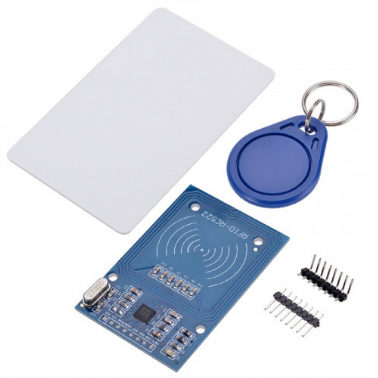

RC522 RFID Reader/Write For Arduino

The MFRC522 is a highly integrated RF frequency reader/writer IC for contact less communication at 13.56 MHz. The MFRC522 reader supports ISO/IEC 14443 A/MIFARE mode..

Features of RC522 RFID READER/WRITER 13.56MHZ for Arduino:

  • Current :13-26mA / DC 3.3V.
  • Idle Current :10-13mA / DC 3.3V.
  • Sleep current: < 80uA.
  • Peak current: < 30mA.
  • Operating Frequency: 13.56MHz.
  • Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire.
  • Product Physical Characteristics: Dimensions: 40mm × 60mm.
  • Environmental Operating temperature: -20-80 degrees Celsius.
  • Environment Storage temperature: -40-85 degrees Celsius.
  • Relative Humidity: 5% -95%.
  • Data Transfer Rate: Max. 10Mbit/s.
